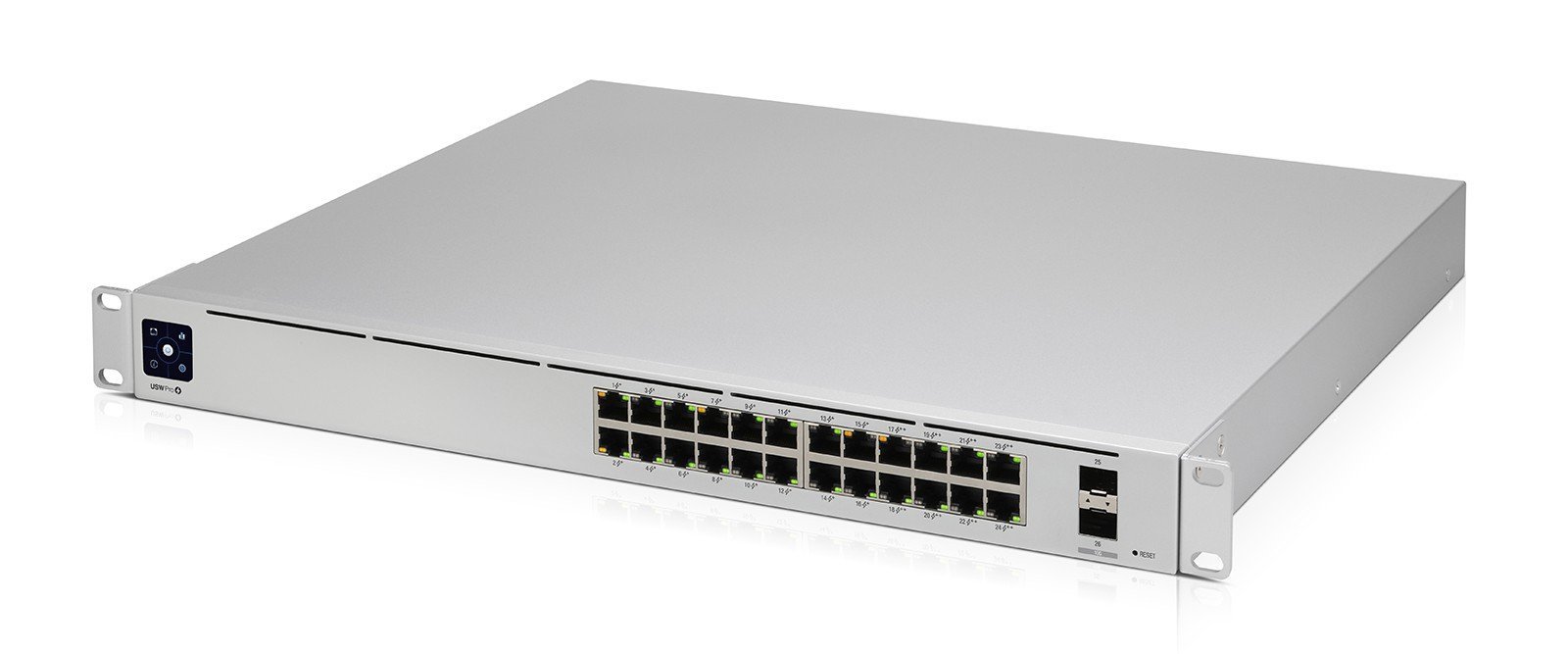

Ubiquiti UniFi 24-Port Switch (USW-24-PoE), (16) GbE PoE+ RJ45 ports, (8) GbE RJ45 ports, (2) 1G SFP ports, 95W Total PoE availability

The Switch 24 PoE (USW 24 PoE) is a fully managed switch with (24) GbE RJ45 ports, including (16) GbE, 802.3at PoE+ ports, and (2) 1G SFP ports. The versatile USW 24 PoE provides Gigabit PoE links to Ethernet devices while also supplying Gigabit fiber uplink options fit for an enterprise network. The switch also offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate), and features a 1.3″ LCM color touchscreen that concisely displays key system and connection insights.

Additionally, with its 7.9″ depth, it’s easy to mount this compact, fanless switch in a SOHO rack cabinet. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi  Network web application and mobile app.

Product Features

• (1) 1.3″ LCM color touchscreen with AR switch management
• (16) GbE, 802.3at PoE+ RJ45 ports
• (8) GbE RJ45 ports
• (2) 1G SFP ports
• 95W total PoE supply
• Fanless, silent cooling

Scalable UniFi Network Controller

Management Capabilities

The UniFi Network Controller can provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organized for a simplified, yet powerful, interface.

Network Overview

From a single pane of glass, view network topology and configuration, real‑time statistics, and debugging metrics. Monitor your network’s vitals and make on‑the‑fly adjustments as needed.

Deep Packet Inspection

Ubiquiti’s proprietary Deep Packet Inspection (DPI) engine includes the latest application identification signatures to track which applications (and IP addresses) are using the most bandwidth.

Detailed Analytics

The UniFi Network Controller provides configurable reporting and analytics to manage large user populations and expedite troubleshooting. Advanced search and sorting capabilities make network management more efficient.

Multi-Site Management

A single controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi‑tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator accounts.

Switch Configuration

You can access any managed UniFi Switch through the UniFi

Controller to configure a variety of features:

• Operation mode (switching, mirroring, or aggregate) per port
• Network/VLAN configuration
• Jumbo frame and flow control services
• Network settings
• Storm control setting per port
• Spanning tree configuration
• 1X control and RADIUS VLAN
• Debug terminal option for command‑line interface

Switch Port Status

• You can also view status information for each port:
• Connection speed and duplex mode
• TX/RX data rates
• Network/VLAN settin

Software Features

• The UniFi Network Controller software offers the following features:
• Centralized configuration management (including configuration
• cloning)
• Auto‑MDIX automatically adjusts as needed for straight through
• or crossover cable
• 1X (RADIUS) authentication and dynamic VLAN.
