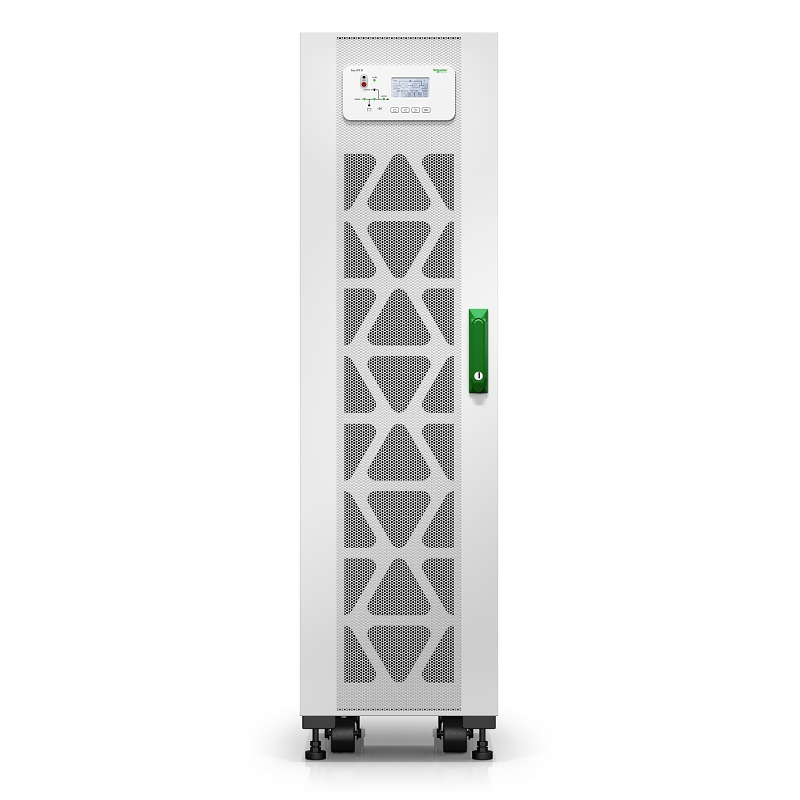

APC 40KVA 400VA | 3 Phase Easy UPS 3S 3:3 (E3SUPS40KHB2)

Product Specifications

General
PROVIDED EQUIPMENT	Dust filter Installation guide
UPS SIZE	WS

Output
RATED POWER IN W	40000 W
MAXIMUM CONFIGURABLE POWER IN W	40000 W
HARMONIC DISTORTION	Less than 3 %
OUTPUT FREQUENCY	50 Hz sync to mains 60 Hz sync to mains
OUTPUTVOLT_OTHER	380 V 415 V
UPS TYPE	Double conversion online
OUTPUT VOLTAGE TOLERANCE	+/- 1.5 %
OUTPUT HARMONIC DISTORTION	< 3% linear load
CURVE EQUATION	Efficiency
CURVE FIXED LOSS	0.0042
CURVE LOAD MAXIMUM	100 %
CURVE LOAD MINIMUM	1 %
CURVE PROPORTIONAL LOSS	0.0258
CURVE SQUARE LOSS	0.0208
CURVE X-AXIS MAXIMUM	100 %
CURVE TEST COND ID	Curve fit to measured efficiency data. All measurements taken in normal operating mode, at typical environmental conditions, with 400V 50Hz input and 400V 50Hz balanced resistive load (PF = 1.0) output.
CURVE X-AXIS MINIMUM	0 %
CURVE X-AXIS TITLE	Load
CURVE X-AXIS UNITS	Percentage
CURVE Y-AXIS MAXIMUM	100 %
CURVE Y-AXIS MINIMUM	50 %
CURVE Y-AXIS TITLE	Efficiency
CURVE Y-AXIS UNITS	Percentage
GRAPH DISPLAY	1
OUTPUT VOLTAGE	400 V 3 phases
MAXIMUM CONFIGURABLE POWER IN VA	40000 VA
RATED POWER IN VA	40000 VA

Conformance
PRODUCT CERTIFICATIONS	CE EAC RCM WEEE
STANDARDS	IEC 62040-1-1 IEC 62040-2 and IEC 62040-3 IEC 62040-4 ISTA 2B

Environmental
AMBIENT AIR TEMPERATURE FOR OPERATION	0…40 °C
RELATIVE HUMIDITY	0…95 % non-condensing
OPERATING ALTITUDE	0…3333 ft
AMBIENT AIR TEMPERATURE FOR STORAGE	-15…40 °C
STORAGE RELATIVE HUMIDITY	Non-condensing 0…95 %
STORAGE ALTITUDE	0.00…15240.00 m
ACOUSTIC LEVEL	63 dBA
HEAT DISSIPATION	1880 Btu/h
SHOW NOTE OP TEMPERATURE	No
IP DEGREE OF PROTECTION	IP20

Batteries & Runtime
BATTERY TYPE	VRLA
NUMBER OF BATTERY-FILLED SLOTS	4
NUMBER OF BATTERY-FREE SLOTS	0
ADDITIONAL INFORMATION	UPS weight does not include battery weight.
LIQUID VALUE	0
BATTERY VOLTAGE	240 V
MAXIMUM SHORT-CIRCUIT CURRENT	10 kA
BATTERY CURVE	B

Offer Sustainability
REACH FREE OF SVHC	Yes
EU ROHS DIRECTIVE	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
MERCURY-FREE	Yes
ROHS EXEMPTION INFORMATION	Yes
CHINA ROHS REGULATION	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
OPTIMIZED ENERGY EFFICIENCY	Energy efficient product
