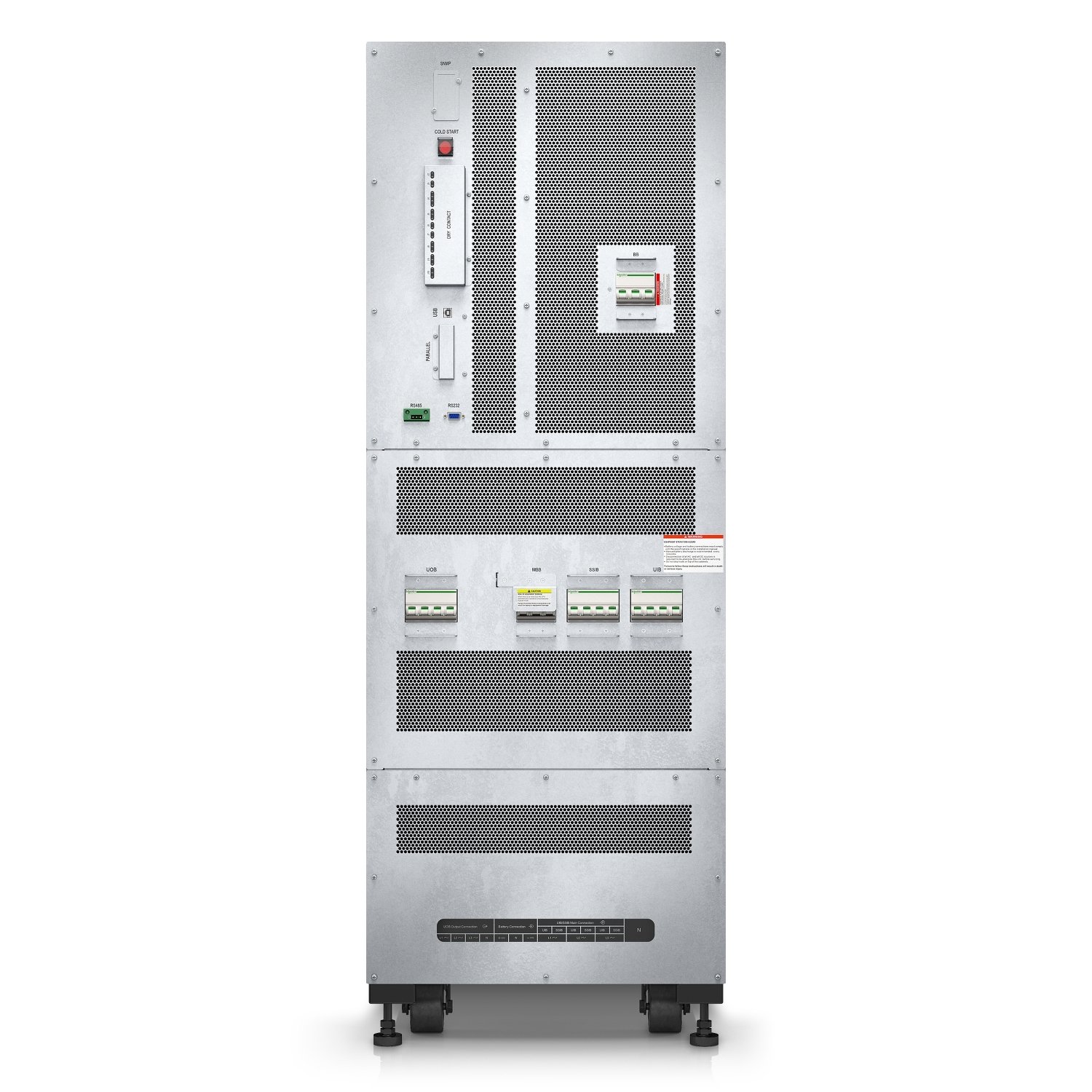

Easy UPS 3S 30kVA 400V 3:3 UPS, 2 internal 7Ah modular battery strings E3SUPS30KHB1
Original price was: KSh 1,155,000.00.KSh 1,150,000.00Current price is: KSh 1,150,000.00.
-
High-efficiency 3-phase UPS with internal batteries providing a runtime of 9 minutes. The UPS features advanced product features, competitive specifications, and …
-
Includes: Dust filter, Installation guide
Easy UPS 3S 30kVA 400V 3:3 UPS, 2 internal 7Ah modular battery strings E3SUPS30KHB1
Easy-to-install, easy-to-operate, easy-to-maintain, and easy-to-service 30 kVA, 400V 3-phase UPS. With advanced product features, competitive specifications, and robust electrical design, the Easy UPS 3S UPS makes business continuity easy for small and medium data centers and electrical rooms. Includes dust filter and conformance-coated boards for harsh environments, and 2 internal 7Ah modular battery strings, expandable to 4 strings for extended runtime.
Product Features
Convenience
Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.
ECO Mode
The operating mode bypasses unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.
Easy to install fast
Quickly roll the compact and lightweight UPS into position.
Easy Loop Test
Verifies UPS performance before you connect your load, without the need for a load bank.
Network management
Provides proactive power and environmental management via web and/or SNMP
Intuitive user interface
The intuitive graphical user interface allows for easy system configuration.
Straightforward installation
Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.
Protection
Wide Input Voltage Window
Saves your battery power for when you really need it: during power cuts.
Replaceable dust filters
protect the UPS in harsh environments.
Parallel capability
Multiple units can be placed in parallel to meet power capacity and redundancy requirements
Product Specifications
| provided equipment |
Dust filter
Installation guide |
|
|---|---|---|
| UPS size |
WS
|
| color |
White (RAL 9003)
|
|
|---|---|---|
| depth |
96.9 cm
|
|
| height |
140 cm
|
|
| net weight |
584 kg
|
|
| USB compatible |
Yes
|
|
| width |
50 cm
|
| network frequency |
45…65 Hz
|
|
|---|---|---|
| input voltage limits |
304…477 V
|
|
| inputvolt_other |
380 V
415 V |
|
| maximum input current |
55 A
|
|
| input harmonic distortion |
Less than 3 % for full load
|
|
| input voltage |
400 V 3 phases
|
|
| load power factor |
0.9 leading to 0.9 lagging
|
|
| cos phi |
0.99
|
| rated power in W |
30000 W
|
|
|---|---|---|
| Maximum configurable power in W |
30000 W
|
|
| harmonic distortion |
Less than 3 %
|
|
| output frequency |
50 Hz sync to mains
60 Hz sync to mains |
|
| outputvolt_other |
380 V
415 V |
|
| UPS type |
Double conversion online
|
|
| output voltage tolerance |
+/- 1.5 %
|
|
| output harmonic distortion |
< 3% linear load
|
|
| curve equation |
Efficiency
|
|
| curve fixed loss |
0.0057
|
|
| curve load maximum |
100 %
|
|
| curve load minimum |
1 %
|
|
| curve proportional loss |
0.0209
|
|
| curve square loss |
0.0256
|
|
| curve X-axis maximum |
100 %
|
|
| curve test cond ID |
Curve fit to measured efficiency data. All measurements taken in normal operating mode, at typical environmental conditions, with 400V 50Hz input and 400V 50Hz balanced resistive load (PF = 1.0) output.
|
|
| curve X-axis minimum |
0 %
|
|
| curve X-axis title |
Load
|
|
| curve X-axis units |
Percentage
|
|
| curve Y-axis maximum |
100 %
|
|
| curve Y-axis minimum |
50 %
|
|
| curve Y-axis title |
Efficiency
|
|
| curve Y-axis units |
Percentage
|
|
| graph display |
1
|
|
| output voltage |
400 V 3 phases
|
|
| Maximum configurable power in VA |
30000 VA
|
|
| rated power in VA |
30000 VA
|
| product certifications |
CE
EAC RCM |
|
|---|---|---|
| standards |
IEC 62040-1-1
IEC 62040-2 IEC 62040-3 IEC 62040-4 ISTA 2B |
